9YG-1.0C Hay Baler Introduction
The 9YG-1.0C Round Hay Baler is a heavy-duty PTO driven agricultural baler designed for efficient corn stalk recycling and forage baling operations. Engineered for tractors with ≥95 HP and 540 RPM PTO output, this trailed round baler delivers high-density, uniform round bales with stable performance in large-scale farming environments.
Equipped with interchangeable hammer-claw and spring-tooth pickup systems, the machine can directly collect upright corn stalks without pre-raking, significantly reducing labor, fuel consumption, and field operation time. The dual 16A heavy-duty chain transmission and 16 reinforced rollers ensure powerful compression, producing dense 1000 × 1250 mm round bales with consistent structure and improved storage efficiency.
With automatic net wrapping, sensor-controlled bale density adjustment, and productivity of up to 80 bales per hour, the 9YG-1.0C is ideal for commercial farms, livestock operations, straw recycling projects, and agricultural service providers seeking reliable, high-output round baling solutions.
Designed for durability, efficiency, and low maintenance, this round hay baler helps modern farms improve operational efficiency while maximizing straw resource utilization.
We not only offer hay balers but also provide mower and other products. Click below to learn more.

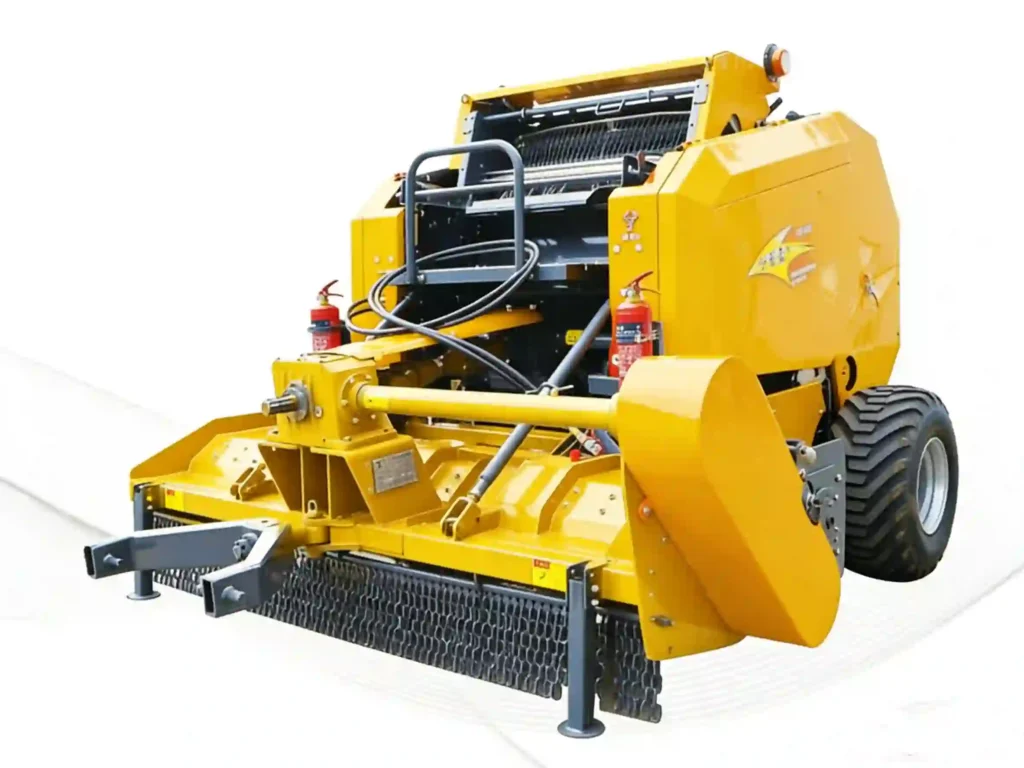

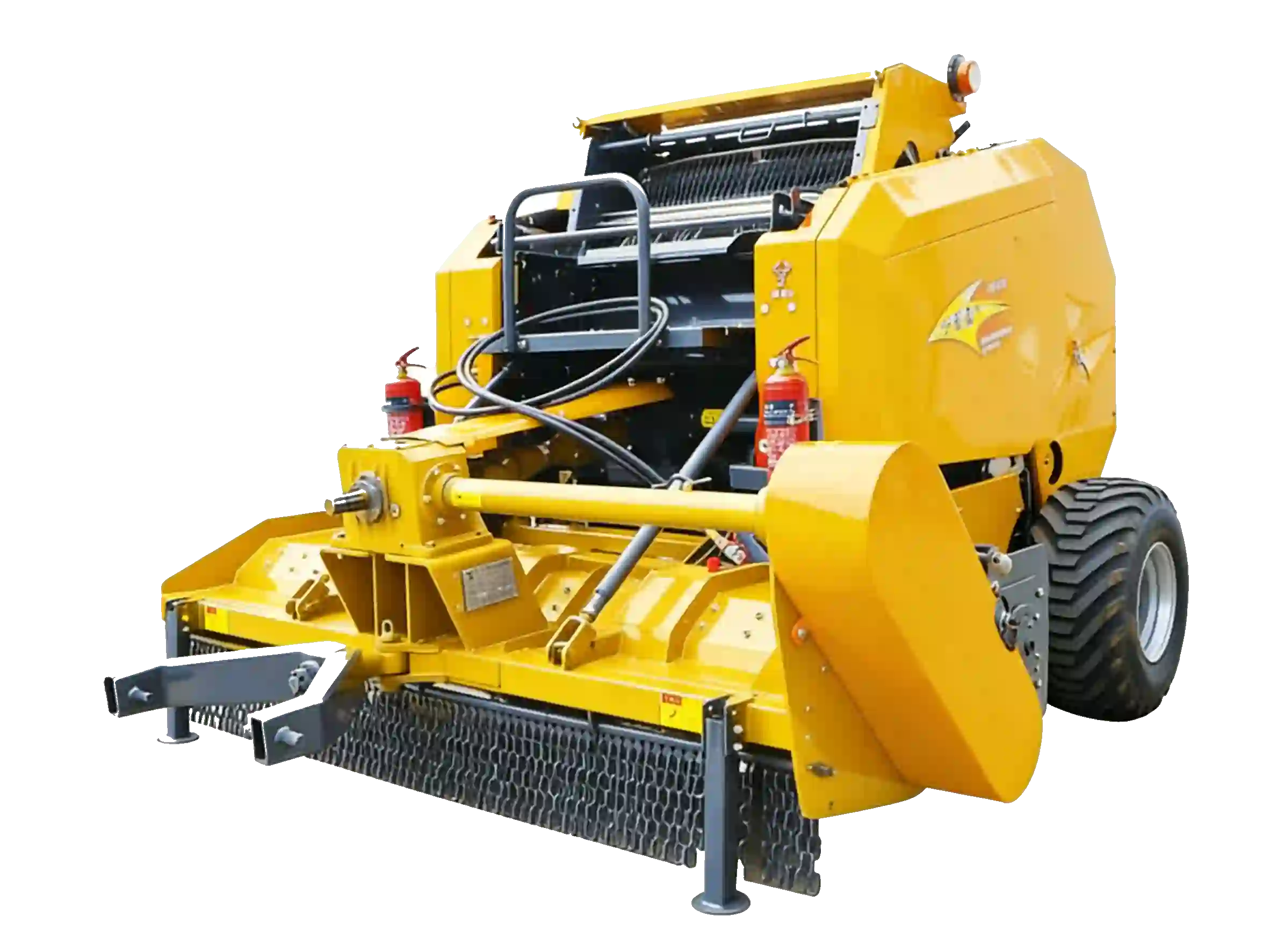

9YG-1.0C Round Hay Baler

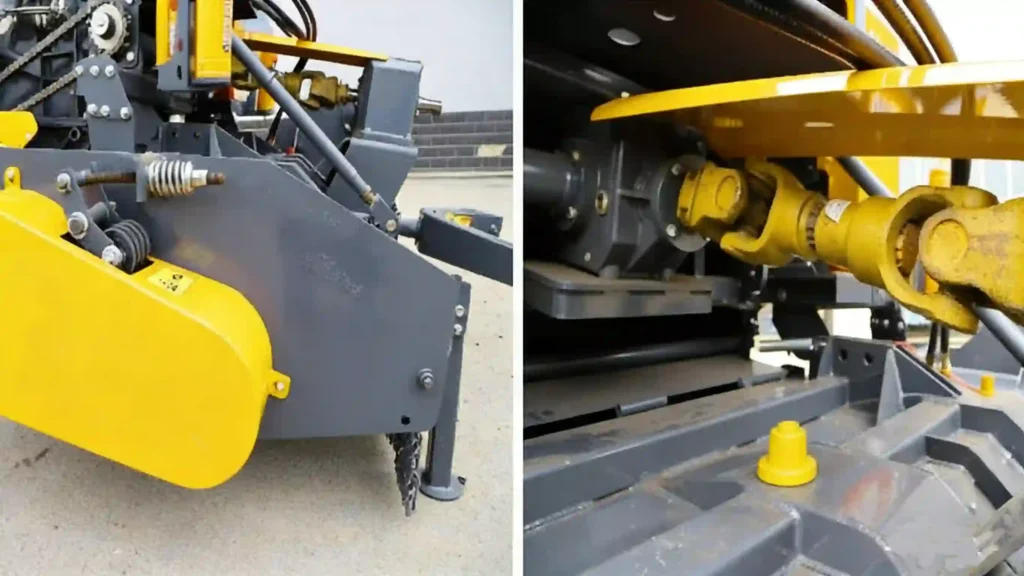

1. 9YG-1.0C Round Hay Baler Details
2. 9YG-1.0C Round Hay Baler Specifications
| No. | Item | Specification | Unit |
|---|---|---|---|
| 1 | Model Name | 9YG-1.0C Round Baler | |
| 2 | Mount Type | Trailed | |
| 3 | Pickup Width | 2400 | mm |
| 4 | Pickup Type | Hammer Claw Type | |
| 5 | Feeding Structure | Auger + Finger Roller + Drum | |
| 6 | Bale Chamber Width | 1250 | mm |
| 7 | Bale Chamber Diameter | 1000 | mm |
| 8 | Rolling Components | 16 (Rollers) | pcs |
| 9 | Roller Diameter | 222 | mm |
| 10 | Binding Method | Automatic Net Wrapping | |
| 11 | Power Requirement | ≥69.8 kW / 95 hp | kW / hp |
| 12 | Machine Weight | 3198 | kg |
| 13 | PTO Speed | 540 | r/min |
| 14 | Overall Dimensions (L×W×H) | 3800 × 2850 × 2200 | mm |
| 15 | Bale Density Control | Sensor Controlled | |
| 16 | Bale Size (D × W) | 1000 × 1250 | mm |
| 17 | Bale Density | 115–200 | kg/m² |
| 18 | Productivity | 40–80 | bales/h |
| 19 | Track Width | 2100 | mm |
| 20 | Working Speed | 5–20 | km/h |
| 21 | Net Size (L × W) | 2000 × 1.25 | m |
| 22 | Number of Hammer Claws | 20 | pcs |
3. User Guide – 9YG-1.0C Round Hay Baler
3.1 Equipment Installation
- Secure the 9YG-1.0C to the tractor’s towing unit, ensuring a secure connection.
- Check that the PTO shaft is correctly connected and confirm that the drivetrain is not loose.
3.2 Selecting the Pickup Tool
- Select either a toothed pickup (suitable for general hay) or a hammer-claw pickup (suitable for corn stalks) based on the crop type.
- Ensure that the fasteners are secure when changing attachments.
3.3 Operation
- Adjust the pickup height to ensure the crop is collected completely, avoiding loss.
- Set the compression chamber pressure to achieve a bale density of 200–400 catties.
- Proceed slowly at the recommended speed to ensure even harvesting and baling.
3.4 Unloading and Handling
- Use a hay bale elevator or handling equipment to easily transfer the bales to the storage area.
- Avoid manually handling excessively heavy bales to reduce safety hazards.

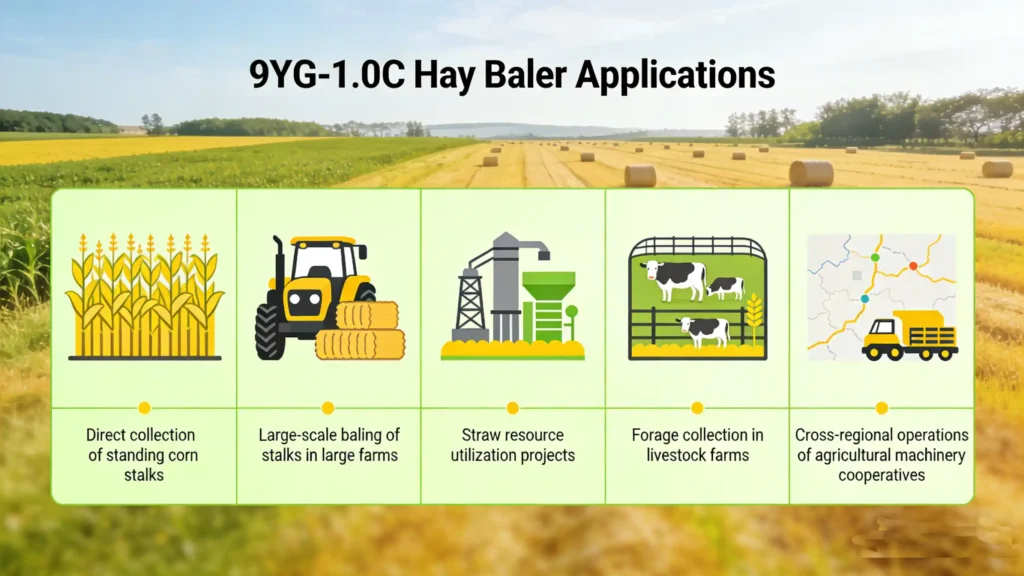

4. 9YG-1.0C Baler of Round Hay Application
- Direct Corn Stalk Recycling Operation (Standing)：Suitable for fields where corn stalks haven’t lodged after harvest. Stalks can be directly chopped, collected, and baled, eliminating the need for rakening and reducing labor and fuel costs.
- Large-Scale Stalk Baling for Large Farms：For farms with large planting areas, the double 16A heavy-duty chain increases compression density (200-400 catties), facilitating centralized transportation and storage, and improving overall operational efficiency.
- Stalk Resource Utilization Projects：Suitable for straw recycling projects such as feed, fuel, and biomass power generation. High-density round balers reduce transportation costs and increase the added value of straw.
- Forage Collection in Livestock Farms：A switchable toothed pick-up device can be used for forage collection, meeting forage baling needs, achieving multi-purpose functionality, and reducing equipment investment.
- Cross-Regional Operations for Agricultural Machinery Cooperatives：Suitable for providing cross-regional straw recycling services, reducing investment in auxiliary equipment and increasing operational profitability.
Looking for a reliable hay baler?
Contact us today to get technical details, pricing, and a tailored solution for your operation.
9YG-1.0C Round Hay Baler FAQs
Q1: Can the 9YG-1.0C handle upright corn stalks efficiently?
▾
Yes, with its interchangeable spring-tooth and hammer-claw pick-up, it simplifies harvesting upright corn stalks while still being compatible with a hay bale elevator for easy transport after baling round bales of hay.
Q2: What is the typical bale weight for this baler?
▾
The 9YG-1.0C produces dense bales weighing 200–400 catties. For smooth loading and stacking, a hay bale elevator is recommended when baling round bales of hay.
Q3: where to buy hay bales near me？
▾
You can contact us directly via email, or visit us at New South Wales – Sydney, 01 Harley Crescent, Condell Park NSW 2200 Australia.
Q4:Is the 9YG-1.0C suitable for baling round bales of hay?
▾
Yes, this baler efficiently handles upright corn stalks and forage crops, making baling round bales of hay faster and more consistent with uniform density.
Q5:What tractor size is recommended for the 9YG-1.0C round hay baler?
▾
The 9YG-1.0C requires a tractor with at least 95 HP (≥69.8 kW) and a 540 RPM PTO output. For optimal performance in heavy corn stalk or high-moisture forage conditions, a 100–120 HP tractor is recommended to maintain stable power delivery and maximum productivity.
Q4:Is the bale density adjustable?
▾
Absolutely. The 9YG-1.0C is equipped with sensor-controlled bale density adjustment, allowing operators to control compression pressure based on storage, transportation, or biomass processing requirements. Higher density bales reduce transportation costs and improve storage efficiency.
