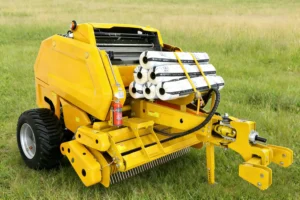

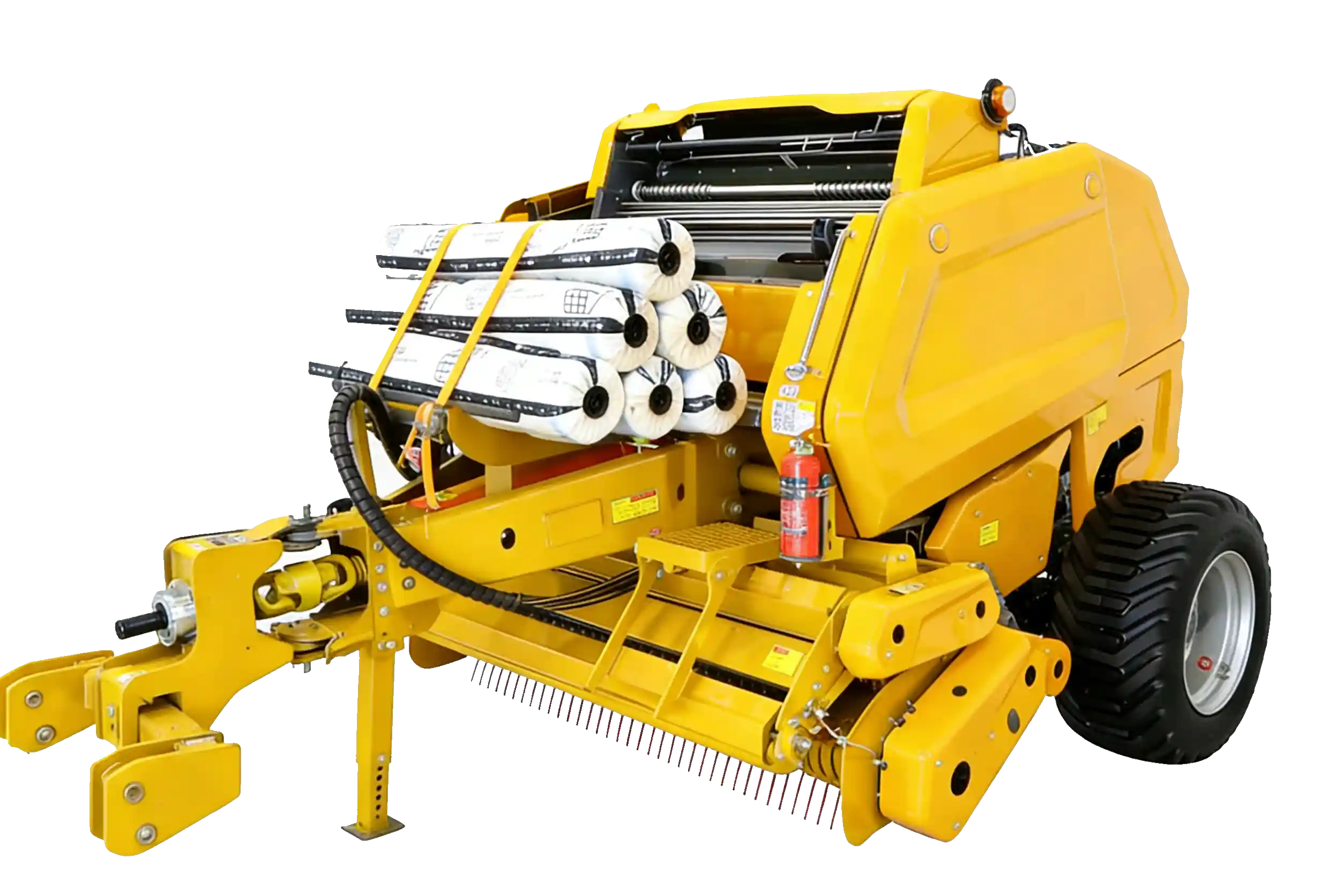

S900 9YG-1.25 Hay Baler Introduction
9YG-1.25 Hay Baler is a high-efficiency commercial forage solution designed for professional farms and contractors. It features a wide pickup system, stable roller compression chamber, and automatic net wrapping to produce uniform, dense round bales. Built for continuous operation and low crop loss, it improves baling efficiency, reduces labor input, and supports reliable storage and transport of hay and straw.
We not only offer hay baler but also provide Hay rake and other products. Click below to learn more.
S9000 Classic 9YG-2-24D Round Hay Baler
S900 9YG-1.25 Hay Baler Details
S900 9YG-1.25 Hay Baler specifications
| No. | Item | Specification | Unit |
|---|---|---|---|
| 1 | Model | 9YG-2.24D Round Baler (S9000 Series) | — |
| 2 | Hitch Type | Trailed Type | — |
| 3 | Pickup Width | 2240 | mm |
| 4 | Pickup Structure | Spring Teeth + Roller Type | — |
| 5 | Feeding System Type | Roller Type | — |
| 6 | Compression Chamber Type | Roller Compression | — |
| 7 | Chamber Width | 1400 | mm |
| 8 | Chamber Diameter | 1200 | mm |
| 9 | Number of Rollers | 18 | pcs |
| 10 | Roller Diameter | Ø222 | mm |
| 11 | Baling Method | Net Wrapping | — |
| 12 | Required Power | 55–100 | kW |
| 13 | Machine Weight | 4570 | kg |
| 14 | PTO Speed | 720 | r/min |
| 15 | Overall Dimensions (L×W×H) | 4600 × 3010 × 2370 | mm |
| 16 | Bale Density Control | Sensor-Controlled System | — |
| 17 | Bale Size (Diameter × Width) | Ø1300 × 1400 | mm |
| 18 | Bale Density | 100–200 | kg/m² |
| 19 | Productivity | 40–100 | bales/h |
| 20 | Track Width | 2600 | mm |
| 21 | Operating Speed | 5–35 | km/h |
| 22 | Net Wrap Specification | 2000 × 1.4 | m / roll |
9YG-2-24 Hay Baler Addressing Pain Points
1. Overcoming the “Small Field Turning” Challenge: Significantly Reducing Transmission System Failure Rate
Customer Pain Point: When operating in irregular or small fields, towed round balers are prone to transmission shaft “stalling” or even breaking due to turning radius limitations, leading to downtime for repairs and missing the optimal harvesting time.
S9000 Classic Advantages: Double Universal Joint + Safety Torque Transmission System.
- Flexible Steering: The independently developed double universal joint transmission shaft completely solves the problem of stalling during turns, allowing the equipment to smoothly transmit power even in narrow terrain.
- Overload Protection: The newly added safety torque transmission shaft acts like a “fuse” for the entire machine, prioritizing the protection of core components in case of sudden loads, avoiding costly repairs that affect the entire system.
2. Solving “Slow Entry and Rapid Wear”: Improving Cyclic Operation Efficiency and Equipment Lifespan
Customer Pain Point: Slow hydraulic system response leads to wasted time opening and closing the bale chamber; the violent vibration during closing not only generates significant noise but also leads to metal fatigue and cracking of the rear chamber structural components over time.
S9000 Classic Advantages: High-Pressure Hydraulic Assembly + Cushioning Protection Mechanism.
- Ultra-Fast Opening and Closing: Uses H-type ferrule connectors with higher pressure resistance. Due to the increased hydraulic load capacity, the opening and closing actions are clean and precise, significantly shortening the single-bale operation cycle time.
- Smooth and Gentle Closing: The rear chamber features a cushioning cylinder, effectively absorbing the huge impact force during closing. This “soft landing” design avoids rigid damage, allowing the equipment to maintain a longer service life even under high-intensity operation.
3. Addressing the “Heavy Load and High Pressure” Challenge: Achieving Extremely Stable High-Yield Output
Customer Pain Point: When facing thick straw or high-density baling requirements, ordinary gearboxes are prone to “stalling” due to insufficient torque, and single-sided transmission often leads to uneven force distribution on the equipment, causing malfunctions.
S9000 Classic Advantages: Heavy-Duty Torque Enhancement + Dual-Sided Synchronous Transmission.
- Ample power reserve: The heavy-duty gearbox directly increases the transmission torque, maintaining powerful performance even when dealing with tough crops, preventing jamming and downtime.
- Stable operation: The rear compartment adopts a double-sided sprocket drive design, resulting in more balanced power distribution. This not only makes the baling process more efficient but also ensures the overall stability of the machine’s operation, reducing mechanical noise and wear caused by uneven force distribution.
Summary⬇
| Customer Core Concern | S9000 Classic Solution | Direct Customer Benefit |
|---|---|---|
| Concern About Breakdown | Double Universal Joints + Safety Torque Shaft + Hydraulic Buffer Cylinder | High Uptime: Failure rate reduced by over 30% |
| Concern About Low Speed | H-Type High-Pressure Couplings + Heavy-Duty Gearbox | Higher Efficiency: Shorter bale cycle time, increased daily output |
| Concern About Maintenance Cost | Reinforced Rigid Structure + Dual-Side Sprocket Drive | Lower Cost: Longer service life and higher resale value |
Looking for a reliable round hay baler?
Contact us today to get technical details, pricing, and a tailored solution for your operation.
S900 9YG-1.25 Hay Baler FAQs
Q1: Can the 9YG-1.25 produce large round circle hay bales for commercial farms?
▾
Yes, it efficiently produces uniform, dense circle hay bales ideal for large-scale commercial farming.
Q2: How should I manage hay bales in field operations?
▾
Our baler creates consistent bales that are easy to handle; follow best practices for hay bales in field to reduce crop loss and ensure efficient transport.
Q3:Where can I buy a bale of hay produced by this baler?
▾
Farms and distributors can produce their own high-quality hay bales using the 9YG-1.25, or sell them directly to customers looking for fresh, uniform round bales.
Q4:What is the typical hay bale size from the 9YG-1.25?
▾
The baler produces round bales approximately 1200 × 1250 mm, ideal for transport, storage, and feeding operations.
Q5:Can these bales be used with a round bale hay feeder?
▾
Yes, the dense, uniform bales are perfect for round bale hay feeders for horses, cattle, and other livestock, ensuring minimal waste and easy handling.
S900 Hay Baler Customer Feedback
John M., Commercial Farmer
“The 9YG-1.25 significantly reduced our baling time. The bales are uniform and dense, perfect for transport and storage. Highly recommended for large farms!”
Sarah L., Livestock Manager
“Baling has never been easier. The automatic net wrapping ensures every bale stays intact, and we’ve seen less crop loss in the field. Excellent efficiency.”
Emma T., Agricultural Contractor
“The 9YG-1.25 is a game-changer. Quick setup, reliable performance, and high output—our clients are impressed with the consistent bale quality.”
Mike R., Horse Stable Owner (Humorous)
“My horses finally stop kicking the bales around! These are perfectly shaped and easy to feed, and I don’t have to chase them across the paddock.”
Products Often Used Together
Enhance your workflow with equipment perfectly matched for S9000 Classic Round Baler.
- Hay Mower
Quickly prepares forage for efficient round bale hay production. - Hay Rake
Organizes cut hay into rows for smooth pickup by the baler. - Bale Transport Trailer
Safely transports round bales of hay from field to storage. - Forage Shredder
Reduces crop size for easier baling and improved storage density.
